item NO.:
TMAX-MMBForma de pagamento:
L/C,T/T,Western Union, Paypalorigem do produto:
Chinaporto de embarque:
Xiamentempo de espera：
5 dayscertificado:
CE ROHS Certificate
18650 21700 26650 32650 máquina de colagem de papel de isolamento de bateria cilíndrica
funcionalidade
esta máquina pode usar um grande rolo de papel de cevada ou PVC para colar automaticamente células cilíndricas.
1. adesivos colados estábulo, consistente , e de longa duração.
2. alarme de falha automática.
3. fácil de programar , ajuste, e opere para novas mãos.
4. alta eficiência, Totalmente automatizado , economizando custos de mão de obra.
especificação
|
fonte de gás de entrada |
0.4-0.8mpa |
|
estilo de função: |
acionamento de passo com pneumática |
|
tensão de entrada: |
ac220v |
|
adesivos matriais: |
papel de cevada ou pvc |
|
adesivo matrials tamanho: |
papel de cevada maxium 350mm; diâmetro interno de rolagem 72-75mm |
|
célula de bateria adaptável |
18650 bateria ou outras baterias cilíndricas |
|
potência: |
energia elétrica ou pneumática |
|
instrumento de controle: |
7 . tela de contato de 5 pés , máquina de programação plc e motor de passo |
|
eletrodos para a distância do corpo: |
100 mm (ajustável escalável) |
|
produtividade: |
4000 peças/h; singal 4 peças |
|
dimensões externas |
1.3m*1m*1.3m |
Detalhes do produto
Wechat:17720812054 Whatsapp:+86 13174506016 Email:David@batterymaking.com
Wechat:17720812054 Whatsapp:+86 13174506016 Email:David@batterymaking.com
Wechat:17720812054 Whatsapp:+86 13174506016 Email:David@batterymaking.com
Wechat:17720812054 Whatsapp:+86 17720812054 Email:David@batterymaking.com
Wechat:17720812054 Whatsapp:+86 13174506016 Email:David@batterymaking.com
Wechat:17720812054 Whatsapp:+86 13174506016 Email:David@batterymaking.com

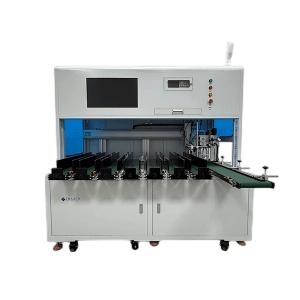

7 Channel Pouch Cell Sorting Machine Functional Overview The Automatic Polymer Lithium Battery Sorting Machine is a high-efficiency system designed for the grading and sorting of lithium polymer batteries. It is suitable for power batteries, 3C digital batteries, and energy storage batteries. The machine provides precise cell grading to meet battery pack assembly requirements and complies with international safety standards. With its intelligent automation design, it improves production efficiency, consistency, and supports the development of Industry 4.0 manufacturing. Main Performance Parameters 1) Applicable Battery Type: Polymer lithium battery 2) Compatible Size Range: Length 50–170 mm, Width 20–100 mm, Height 4–20 mm 3) Control System: PLC programmable control 4) Integrated Functions: Fully automatic loading, testing, code scanning, and sorting process, reducing manual intervention 5) MES Interface: Real-time recording of QR code and test data, with SPC analysis report generation 6) Sorting Speed: Up to 1000 PCS/hour per unit — more than three times the efficiency of manual sorting Equipment Environmental Requirements Item Parameter Ambient Temperature 5°C–35°C Humidity 20%–90% Air Supply Pressure 0.5–0.6 MPa Power Supply 220V, 50Hz/60Hz Floor Load Capacity ≤200 kg/m² Grounding Type Direct grounding Installation Site Clean, level, no vibration or electromagnetic interference Noise Level ≤80 dB Equipment Parameters Item Specification Machine Dimensions L1800 × W1570 × H1750 mm Machine Weight Approx. 493 kg Machine Color Computer white (customizable) Total Power ≤1.5 kW Machine appearance and dimensions Mainframe length*width*height: L1800mm*W1570mm*H1750mm Machine Structure and Configuration The sorting machine consists of a metal frame platform, pneumatic components, servo motors, sensors, PLC controller, and industrial control system. Main Configuration Table Category Component Brand Remarks Main Body Cabinet Frame TMAX Metal base and aluminum profile upper frame Main Worktable TMAX Electrical System Barcode Scanner Honeywell Industrial PC JIANO Servo Motor XINJIE PLC Controller XINJIE Display Philips / HKC Internal Resistance Tester HEPU Standard Components XingChen / Deke
